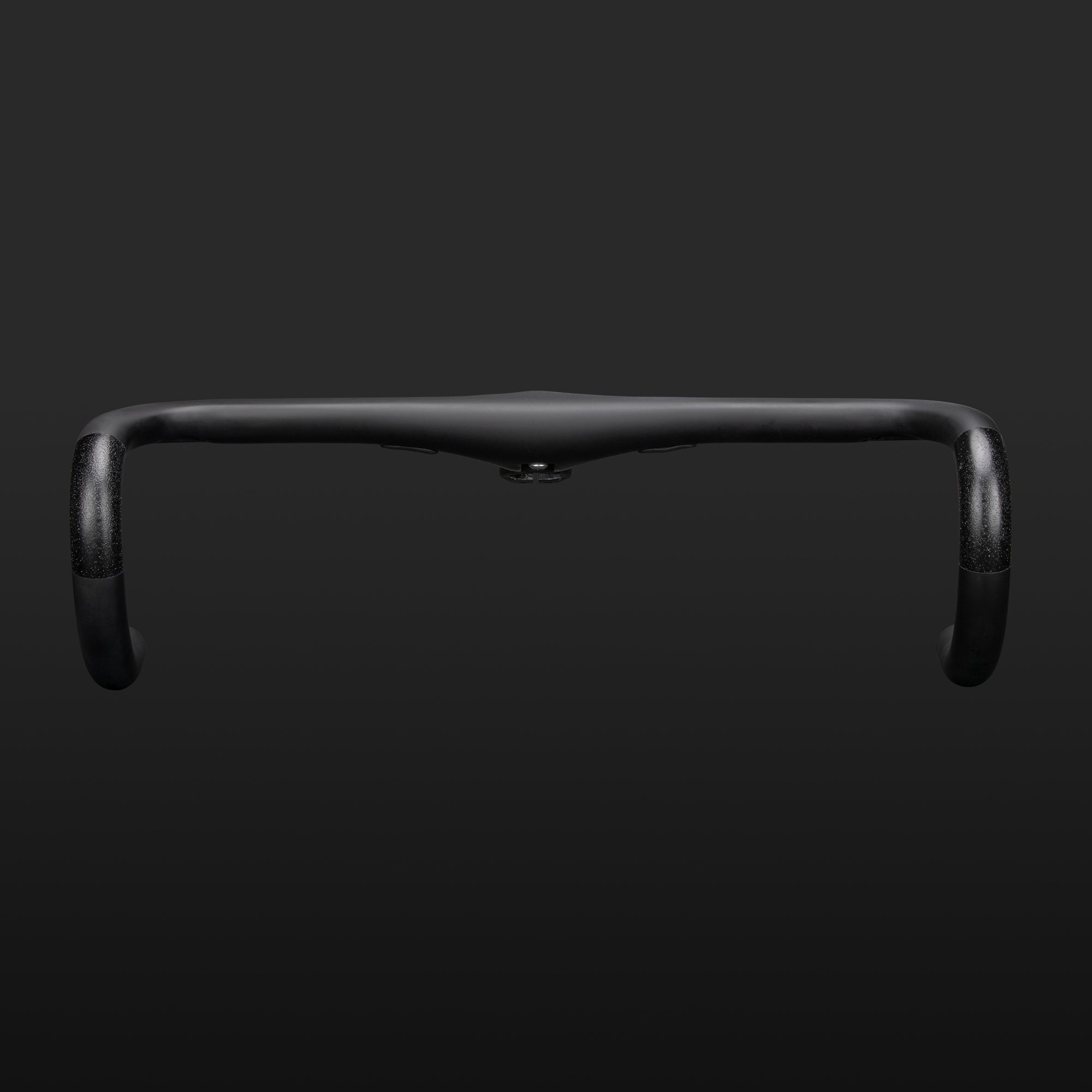

Integrale Bar/Stem

The one piece bar for any road bike and any riding style.

The OTHR Integrale is a lightweight one piece bar/stem that’s at home on nearly any bike. No gimmicks, no “new revelations in ergonomics”, and no proprietary parts required. The OTHR Integrale is immediately familiar and comfortable as an integrated part of any new bike or an upgrade to an old favorite.

  • Lightweight at just 360g
  • Mid-compact drop of 125mm and a reach of 80mm
  • Internal or external routing options
  • Lifetime warranty
Stem Length: 90mm
Handlebar Width: 38cm
Sale price$599.00

Integrale Overview

VERSATILE & COMFORTABLE

With a mid-compact drop of 125mm and a reach of 80mm the Integrale’s dimensions will feel just right to nearly any dropbar disciple. The stem angle, at -7*, is enough to get low without forcing a contortionist position. The tops are lightly ovalized with flattened leading edges for plenty of hand positions and quicker profile in the wind. And the drops have just enough flare to keep your wrists clear in a sprint, but won’t skew your hood position.

STIFF BUT NOT TOO STIFF

OTHR Integrale’s carbon layup provides a precise platform that’s stiff for even the most powerful sprinters and direct for confident handling over any road surface.

COMPATIBLE WITH MOST BIKES

Compatible with any bike with a 1 ⅛” steerer. It has provisions for internal routing of mechanical and electronic groupsets along with compatibility for internally routed or externally routed frames. And, it’ll work with your head unit, lights, or accessories like action cameras with the included, adjustable computer mount.

VERSATILE & COMFORTABLE

With a mid-compact drop of 125mm and a reach of 80mm the Integrale’s dimensions will feel just right to nearly any dropbar disciple. The stem angle, at -7*, is enough to get low without forcing a contortionist position. The tops are lightly ovalized with flattened leading edges for plenty of hand positions and quicker profile in the wind. And the drops have just enough flare to keep your wrists clear in a sprint, but won’t skew your hood position.

STIFF BUT NOT TOO STIFF

OTHR Integrale’s carbon layup provides a precise platform that’s stiff for even the most powerful sprinters and direct for confident handling over any road surface.

COMPATIBLE WITH MOST BIKES

Compatible with any bike with a 1 ⅛” steerer. It has provisions for internal routing of mechanical and electronic groupsets along with compatibility for internally routed or externally routed frames. And, it’ll work with your head unit, lights, or accessories like action cameras with the included, adjustable computer mount.

HOW DOES THE INTEGRALE BAR STACK UP AGAINST THE COMPETITION?

OTHR Integrale ENVE SES Aero Pro One-Piece Bar FSA Metron 5D ACR EVO Black Inc Integrated Barstem - HB04
Price $599 $1,200 $669 $500
Material T800s carbon High-modulus Carbon 3K Carbon Carbon Fiber
Weight 360 g 365 g 410 g 440 g
Integration One-Piece One-Piece One-Piece One-Piece
Routing Internal & External Internal Only Internal Only Internal Only
Reach 80 mm 79 mm 80 mm 75 mm
Drop 125 mm 129 mm 125 mm 116 mm
Flare 1.5 cm each side 5 mm offset 7° (drop section)
Stem Length 90–120 mm 90–140 mm 110 mm only 80–130 mm
Handlebar Width 38–44 cm 37–44 cm 42 cm only 36–40 cm
Accessories Adjustable computer mount Computer mount Computer Mount Computer Mount
Warranty Lifetime Lifetime 2 Years See Black Inc Warranty

OTHR Integrale

Price: $599
Material: T800s carbon
Weight: 360 g
Integration: One-Piece
Routing: Internal & External
Reach: 80 mm
Drop: 125 mm
Flare:
Stem Length: 90–120 mm
Handlebar Width: 38–44 cm
Accessories: Adjustable computer mount
Warranty: Lifetime

ENVE SES Aero Pro One-Piece Bar

Price: $1,200
Material: High-modulus Carbon
Weight: 365 g
Integration: One-Piece
Routing: Internal Only
Reach: 79 mm
Drop: 129 mm
Flare: 1.5 cm each side
Stem Length: 90–140 mm
Handlebar Width: 37–44 cm
Accessories: Computer mount
Warranty: Lifetime

FSA Metron 5D ACR EVO

Price: $669
Material: 3K Carbon
Weight: 410 g
Integration: One-Piece
Routing: Internal Only
Reach: 80 mm
Drop: 125 mm
Flare: 5 mm offset
Stem Length: 110 mm only
Handlebar Width: 42 cm only
Accessories: Computer Mount
Warranty: 2 Years

Black Inc Integrated Barstem - HB04

Price: $500
Material: Carbon Fiber
Weight: 440 g
Integration: One-Piece
Routing: Internal Only
Reach: 75 mm
Drop: 116 mm
Flare: 7° (drop section)
Stem Length: 80–130 mm
Handlebar Width: 36–40 cm
Accessories: Computer Mount
Warranty: See Black Inc Warranty

TESTED. PERIOD.

In the lab and on the road - the OTHR Integrale has been through the gauntlet. We’ve put these bars through the ringer: under a variety of riders big and small, climbers and sprinters, on bikes from carbon to steel to titanium, rim brake and disc brake, old school and new. The feedback is unanimous - these bars work. There’s no adjustment period, nothing to get used to - they’re immediately familiar in feel with a look that’s distinctly modern and timeless.

But that’s not enough - they have to hold up. They’ve got to be able to take years of abuse, and not just smooth road rolling either. We’ve tested these above and beyond the standards required for road and gravel handlebars to ensure they’re solid yet compliant over a variety of terrain and on a wide range of bikes. The Integrale is light, but built right.



TESTED. PERIOD.

In the lab and on the road - the OTHR Integrale has been through the gauntlet. We’ve put these bars through the ringer: under a variety of riders big and small, climbers and sprinters, on bikes from carbon to steel to titanium, rim brake and disc brake, old school and new. The feedback is unanimous - these bars work. There’s no adjustment period, nothing to get used to - they’re immediately familiar in feel with a look that’s distinctly modern and timeless.

But that’s not enough - they have to hold up. They’ve got to be able to take years of abuse, and not just smooth road rolling either. We’ve tested these above and beyond the standards required for road and gravel handlebars to ensure they’re solid yet compliant over a variety of terrain and on a wide range of bikes. The Integrale is light, but built right.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Ben
Smooth and comfort

Ordered these bars because of the style and design. When they arrived which was super fast I was completely blown away with the quality and design. Installed and after a few rides I knew
I had made the right choice. Highly recommend these bars

A
Anthony F
Great bars

I'm pleasantly surprised by the ease of height adjustment on this, my first set of bars with fully integrated cockpit. When installed properly you can quickly and easily increase/decrease spacers by 4cm. They have a pretty standard dimensions in the reach, drop, and stem angle department which makes them great for most people. The relatively standard looking interface to the bars allows you to change the spacer stack height without cutting your steer tube till your ready. The shape is a modern standard but my favorite part is the ergonomic shape of the tubes when in the drops which is a pleasure to wrap your hand around and ergonomically fits well.

No, you can't change the stem length, bar tilt, or side to side location; these may be drawbacks to some but a consideration for any one piece bar stem combo...and the beauty of them if you've done your homework on bike fit in advance. What you are left with is sleek looks and a firm feel when riding out of the saddle.
